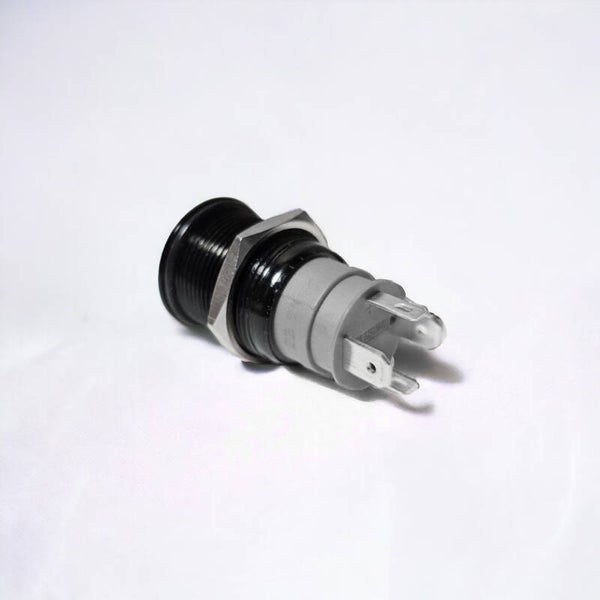

NorTide Black pushbutton 12V / 24V 20A IP67 white LED | Black
Upgrade your dashboard with NorTide – The Perfect Stainless Steel Switches for a Luxury Look and Reliable Functionality!
Specifications:
- IP67 waterproof - Dustproof and submersible
- Made of Anodised Aluminium - for a bad-ass look!
- 12V / 24V multivoltage - Suitable for all boats!
- Switches up to 20A - No need for bulky relays anymore.
- Available with connector - for easy connection in your boat or camper
- Momentary or Latching - Suitable for, for example, a horn (momentary) or lighting (latching)
- Available in many colors
Scroll down for more information!
Technical properties
Installation diameter 19mm
Outer diameter 22mm
Voltage 12V/24
Maximum current 20A
Color LED Red
Contacts 1X NO
Switching Momentary or latching
Material properties
Housing material Anodized aluminum
Knob material Anodized aluminum
Contact material Silver alloy
Base material PBT
Environmental properties
IP value IP67
Operating temperature -20 to +50 °C
Operating pressure force 3 - 5N
Nut tightening torque 5 - 14Nm
Electrical properties
Operating temperature: -10 to +50 °C
Mechanical life: 55,000 cycles
LED Lifespan: 40,000 hours
Front IP Rating: IP67 (front)
IP Value rear: IP65, with connector
Contact resistance: 50 mOhm
Nut tightening torque: 5- 14Nm
Latching vs Momentary switch
The difference between a momentary and a latching switch:
The difference between a momentary and a latching switch is in how they hold their position:
Momentary switch: Returns to original position when released. For temporary functions, such as a doorbell or horn.
Latching switch: Remains in the selected position (on/off) until you manually reset it. For functions such as lighting.
About
NorTide Marine is a brand that specializes in high-quality switches and electronics for various applications. There are many different switches available, but not all switches have the quality you are looking for.
NorTide has gathered an extensive selection of switches of the very best quality, designed with an eye for detail and with the most beautiful appearance. Each type of NorTide switch combines functionality with a stylish design and is carefully selected and tested to meet the highest demands. Whether you are looking for durability, reliability or a refined finish,
With a NorTide push button or switch, you will notice from the first time you press that it is not just 'the first available' switch. These switches immediately give you the feeling of quality combined with robustness. Perfect for use in your boat, RV, machine or other application!
