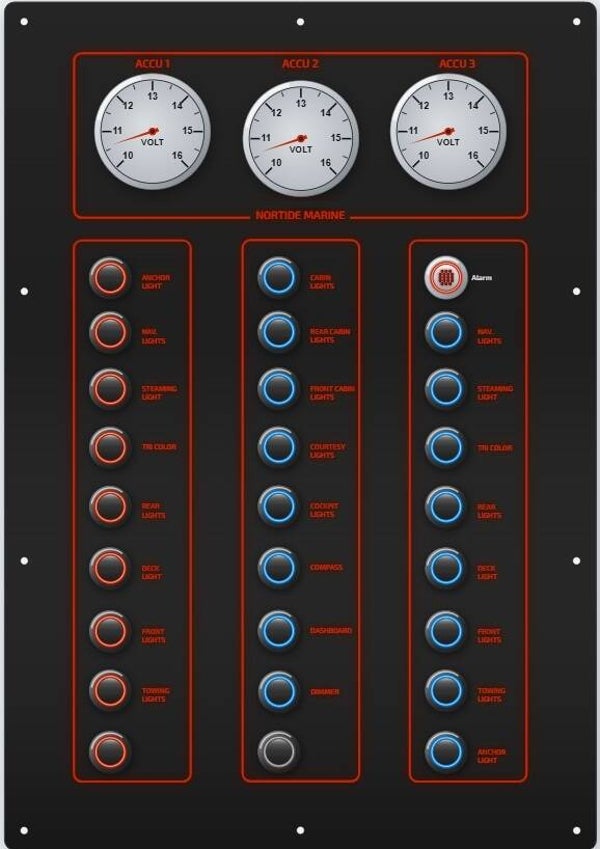

12V / 24V Schakelpaneel - Nortide marine 1803- 26 drukknoppen, alarm en custom graveringen

12V / 24V Schakelpaneel - Nortide marine 1803- 26 drukknoppen, alarm en custom graveringen
€870.00 FREE shipping

Which text should be engraved with each button (from left to right)

  • 415 × 300 × 5 of 6 mm

  • 26 roestvrijstalen, waterdichte drukknoppen met LED-ring

  • 1× zoemeralarm

  • Graveringen volledig naar wens aan te passen

  • Voorbedraad voor eenvoudige installatie

  • Volledig naar wens te configureren, zowel de indeling als de graveringen

Een robuust en volledig aanpasbaar schakelpaneel voor 12V- en 24V-boordsystemen. Zowel de indeling van de bedieningselementen als de graveringen kunnen volledig worden afgestemd op de specifieke wensen en toepassing.

This switch panel is made from UV-resistant acrylic, combined with waterproof push buttons and automatic circuit breakers from NorTide Marine Equipment.

This compact switch panel is equipped with thermal circuit breakers, LED indicators, and robust push buttons. Instead of printing your own labels, we engrave your custom text and logo directly into the panel.

Looking for the finishing touch? Choose illuminated engravings. The backlighting of the engravings can be switched on and off easily using a switch of your choice.

The engravings are perfectly smooth to the touch while remaining razor-sharp and highly visible.

Premium finish – Fully hand-finished and assembled.

Completely waterproof - Foam gasket provides waterproof seal between panel and mounting surface

12V / 24V multivoltage – Operating voltage range from 8V to 28V.

Easy installation – The panel is pre-wired exclusively with marine-approved and certified cabling.

Brand NorTide Marine
Article code 1803
Max. Current per button (resistive) 20 Ampere
max. Current per button (inductive) 15 Ampere
Circuit breaker trip values 5 / 10 / 15 / 20 Amp (selected by you after ordering)
Height 415 mm
Width 300 mm
Material HiGloss Of UniMatte acryllic
Material thickness 5 or 6mm
Edges chamfered? Yes, edges are chamfered 45 degree, sanded and polished
Buttons IP rating (front side) IP67
Circuit breakers IP rating (front side) IP67
Backlight Yes, engravings can be lit up

Installation Tips

Download the template above and print it out. Check with a ruler that the printed version is to scale. Use of this template is entirely at your own risk.

  • Always install a suitably rated main fuse between the switch panel and the battery.

  • Ensure that the cable running from the battery to the panel is of sufficient gauge. We recommend using a 6 mm² cable.

  • Need assistance? Simply contact our technical support team.
